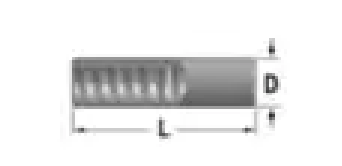

| Coupling | Length | Diameter | Thread | Weight approx kg | Part No. | ||
| mm | Foot | mm | inch | ||||
 |
155 | 6 1/8 | 44 | 1 3/4 | R32 | 1 | 7314-1601 |
| 150 | 5 7/8 | 35 | 1 3/8 | R25 | 0.7 | 7314-1602 | |
| 160 | 6 5/16 | 38 | 1 1/2 | R25 | 1.3 | 7314-1603 | |
 |
150 | 5 7/8 | 45 | 1 3/4 | R25-32 | 1.1 | 7314-1604 |
| 160 | 6 5/16 | 45 | 1 3/4 | R25-32 | 1.2 | 7314-1605 | |
| 160 | 6 5/16 | 56 | 1 13/64 | R25-38 | 2.5 | 7314-1606 | |
| 170 | 6 3/4 | 56 | 1 13/64 | R25-38 | 3.2 | 7314-1607 | |
|

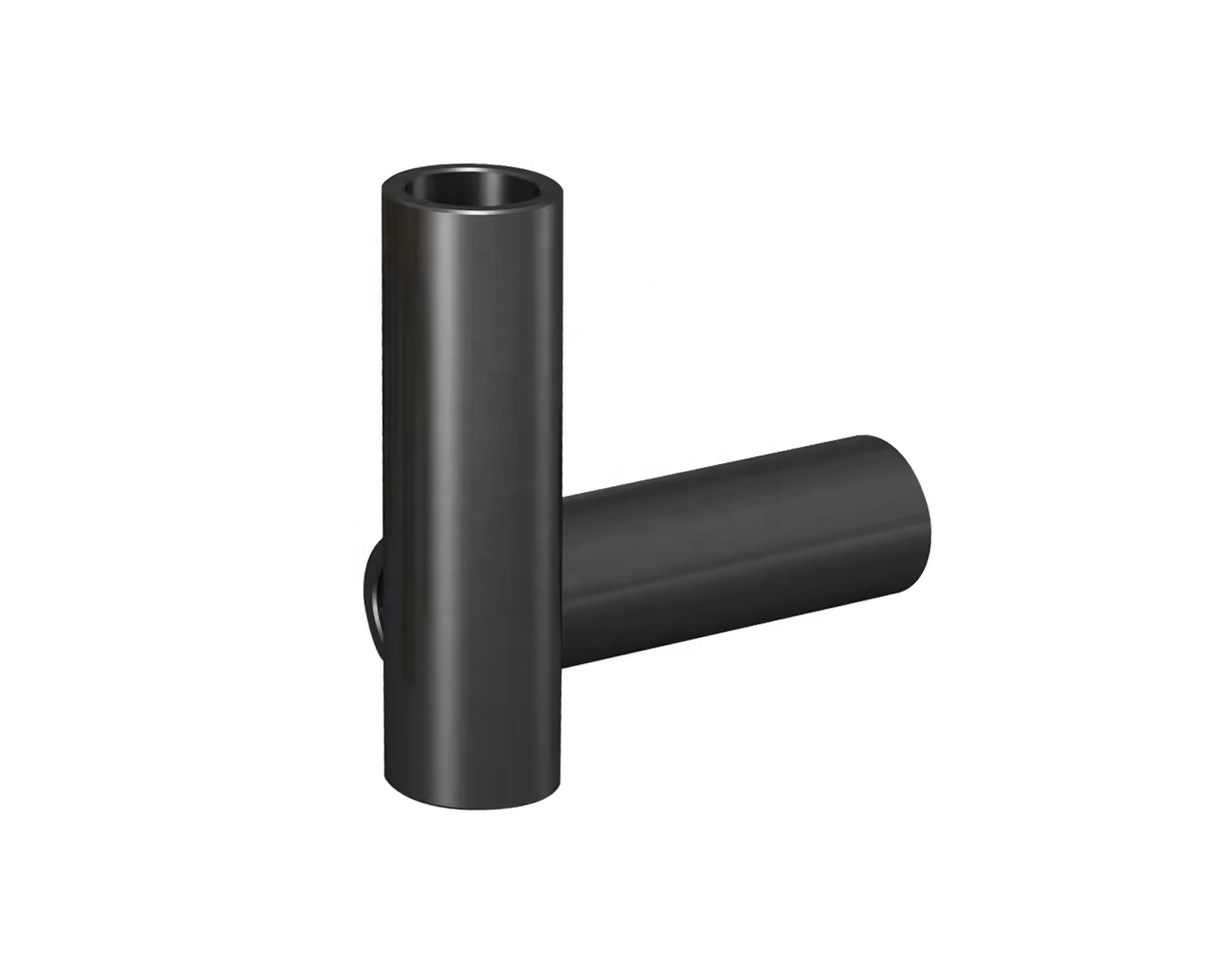

Coupling sleeves
|
150 | 5 7/8 | 44 | 1 3/4 | R32 | 1 | 7314-2601 |
| 150 | 5 7/8 | 40 | 1 37/64 | R28 | 0.9 | 7314-2602 | |
| 170 | 6 3/4 | 55 | 2 5/32 | R38 | 2 | 7314-2603 | |
|
Coupling sleeves of different diameter
|
160 | 6 5/16 | 45 | 1 3/4 | R28-R32 | 1.2 | 7314-2604 |
| 160 | 6 5/16 | 56 | 1 13/64 | R28-R38 | 2.5 | 7314-2605 | |
| Coupling sleeves | 170 | 6 3/4 | 55 | 2 5/32 | R38 | 1.8 | 31-R38-55-170-23 |
| 190 | 7 1/2 | 55 | 2 5/32 | T38 | 2 | 31-138-55-190-23 | |
|
Coupling sleeves of different diameter
|
150 | 6 1/6 | 45 | 1 3/4 | R25-R32 | 1.1 | 33-R25/R32-45-150-23 |
| 160 | 6 1/4 | 45 | 1 3/4 | R25-R32 | 1.2 | 33-R25/R32-45-160-23 | |
| 160 | 6 1/4 | 45 | 1 3/4 | R28-R32 | 1.2 | 33-R28/R32-45-160-23 | |
| 160 | 6 1/4 | 55 | 2 5/32 | R32-R38 | 1.8 | 33-R32/R38-55-160-23 | |
| 170 | 6 3/4 | 55 | 2 5/32 | R32-R38 | 2 | 33-R32/R38-55-170-23 | |
| 180 | 7 1/16 | 55 | 2 5/32 | R32-R38 | 2.2 | 33-R32/R38-55-180-23 | |
| 210 | 8 1/4 | 55 | 2 5/32 | R32-R38 | 2.8 | 33-R32/R38-55-210-23 | |
| 170 | 6 3/4 | 55 | 2 1/8 | R32-T38 | 2.1 | 33-R32/T38-56-170-23 | |
| 180 | 7 1/16 | 56 | 2 1/8 | R32-T38 | 2.2 | 33-R32/T38-56-180-23 | |
| 210 | 6 1/4 | 56 | 2 1/8 | R32-T38 | 2.8 | 33-R32/T38-56-210-23 | |
| 190 | 7 1/2 | 63 | 2 33/64 | R32-T45 | 3.2 | 33-R32/T45-63-190-23 | |
|
Coupling sleeves
|
170 | 6 2/3" | 55 | 2 3/16" | R38 | 1.8 | 7314-3653 |
|
Coupling sleeves
|
175 | 6 8/9" | 55 | 2 3/16" | R38 | 2 | 7314-3654 |
|
Coupling sleeves
|
190 | 7 1/2 | 55 | 2 5/32 | T38 | 2.1 | 7314-3801 |
|
Coupling sleeves
|
210 | 8 1/4 | 63 | 2 33/64 | T45 | 3 | 31-T45-63-210-23 |
| 210 | 8 1/4 | 63 | 2 37/64 | T45 | 3.3 | 31-T45-66-210-23 | |
|
Coupling sleeves
|
225 | 8 7/8 | 71 | 2 51/64 | T51 | 4.6 | 31-T51-71-225-23 |
| 225 | 8 7/8 | 76 | 3 | T51 | 4.8 | 31-T51-76-225-23 | |
| 235 | 9 1/4 | 72 | 2 7/8 | T51 | 4.7 | 31-TS1-72-235-23 | |
| 235 | 9 1/4 | 77 | 3 1/32 | T51 | 4.9 | 31-T51-77-235-23 | |
