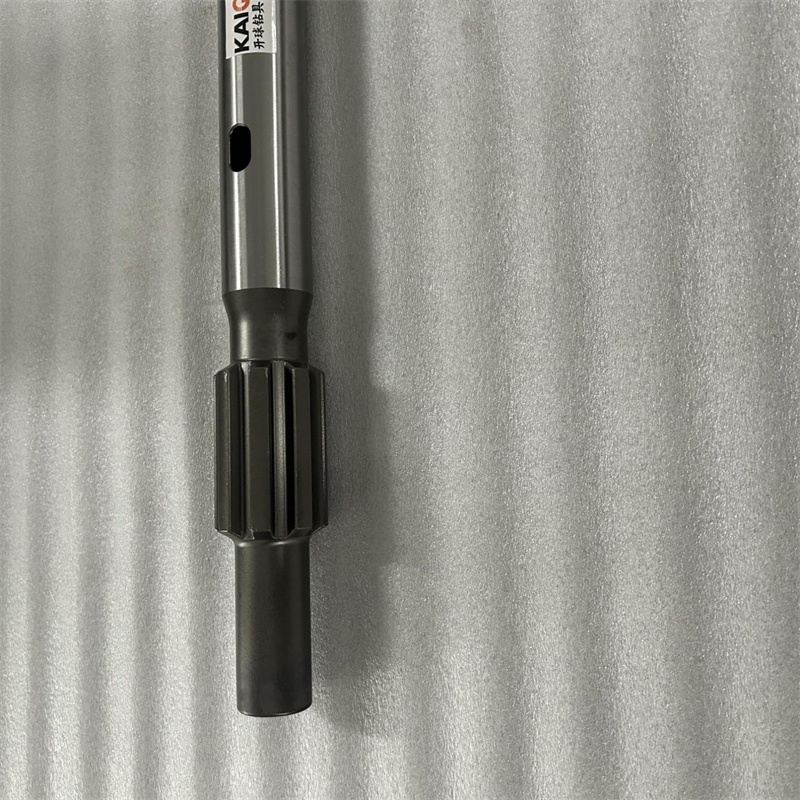

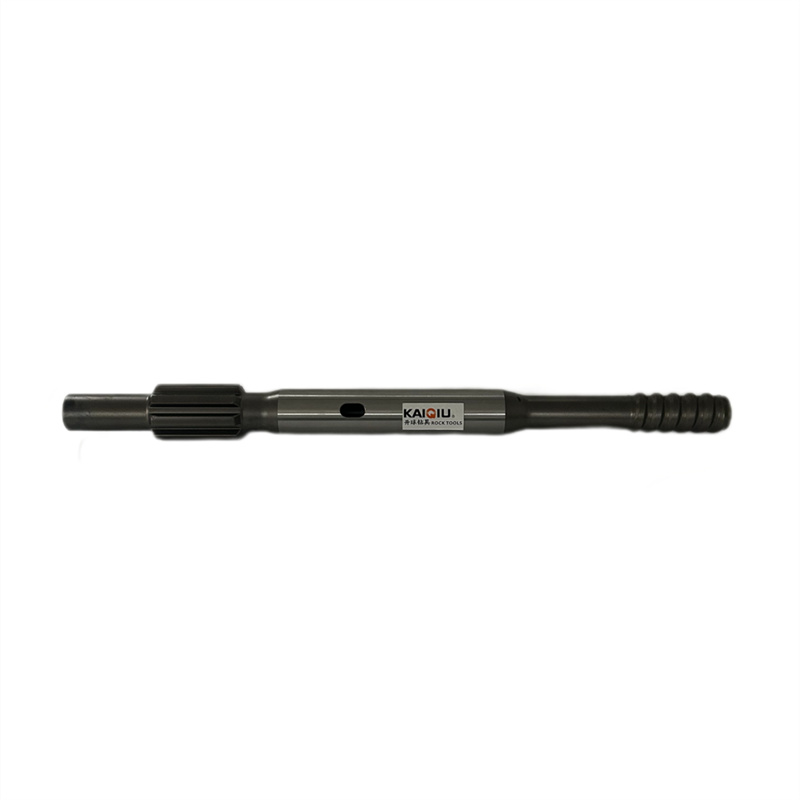

Maximize your high-frequency drilling efficiency with the HD609 T38 D45 620 shank adapter. Specifically engineered for HD609 series hydraulic drifters, this 620mm extra-long striking bar features a high-torque T38 thread and a robust 45mm diameter. Crafted from premium-grade alloy steel and treated with advanced carburization, it delivers exceptional energy wave transmission and superior resistance to bending and fatigue in complex mining and tunneling environments.
Why Choose Our HD609 T38 D45 620 Shank Adapter?

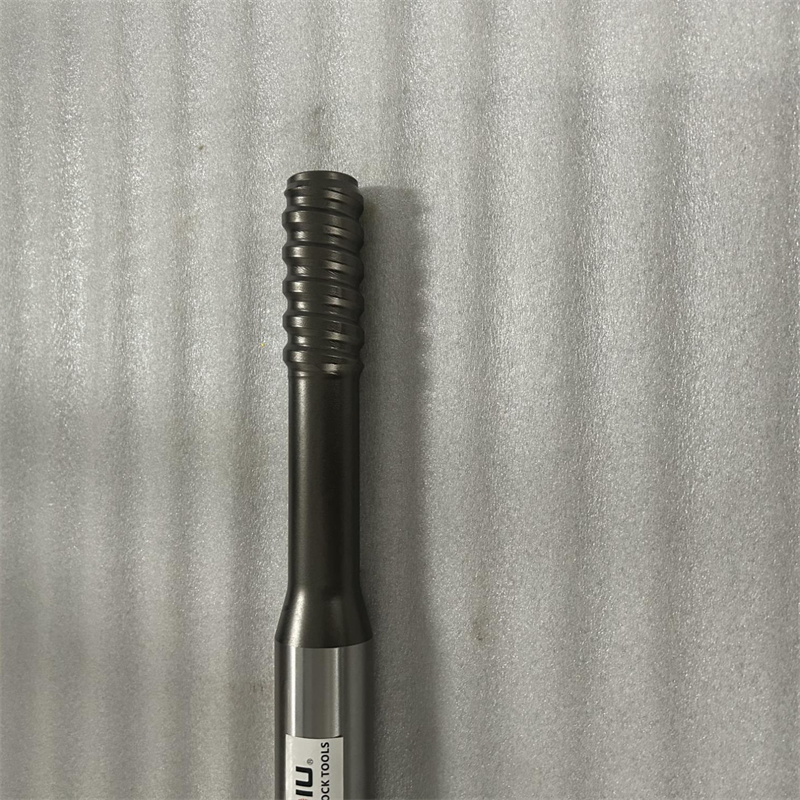

Robust T38 Thread System: The T38 thread provides an expanded load-bearing surface area compared to standard R-threads. It allows for much higher rotation torque transmission and easier uncoupling after long, high-pressure drilling cycles, preventing thread "cold welding" or jamming in fractured ground.
Reinforced D45 Structural Rigidity: Under high feed pressures, extra-long shanks are highly susceptible to flexing. The 45mm body diameter provides extreme resistance against bending and axial fatigue, maintaining superior hole straightness even when drilling through highly variable geological strata.
Advanced Surface Engineering: Every shank adapter undergoes strict full-body carburizing followed by high-intensity shot peening. This introduces beneficial compressive stresses, creating a "glass-hard" outer shell to withstand front-head bushing friction while preserving a highly ductile core to absorb millions of cyclic stress impacts.
Primary Applications
The HD609 T38 D45 620 is the professional choice for:
Underground Production Mining: Long-hole stoping, fan drilling, and specialized extraction.
Complex Tunneling & Drifting: Umbrella arch configurations, forepoling support, and face development.
Deep Hole Reinforcement: High-accuracy drilling for structural rock bolts and ground consolidation.
