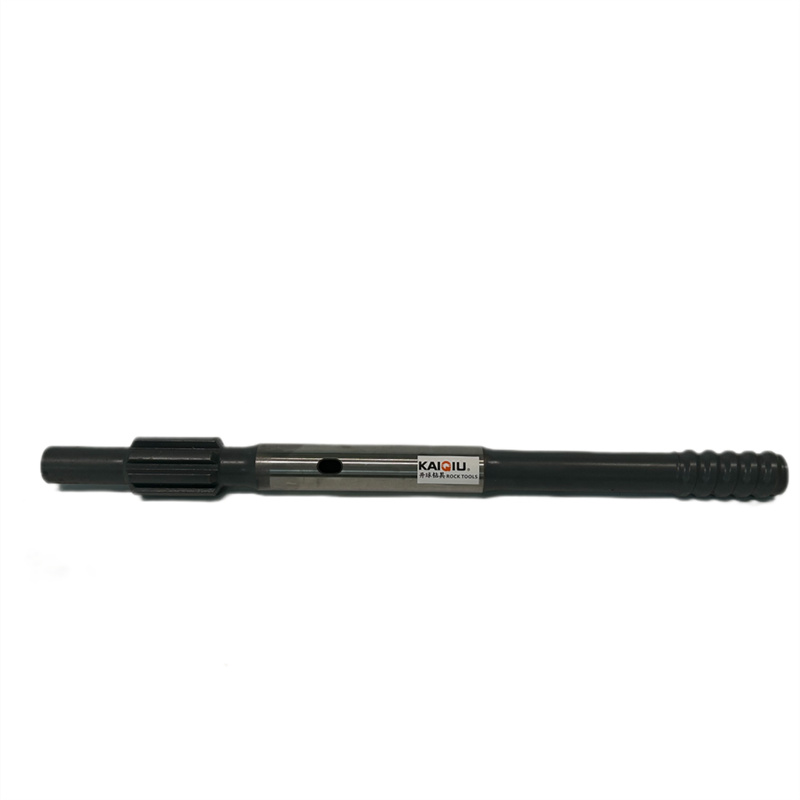

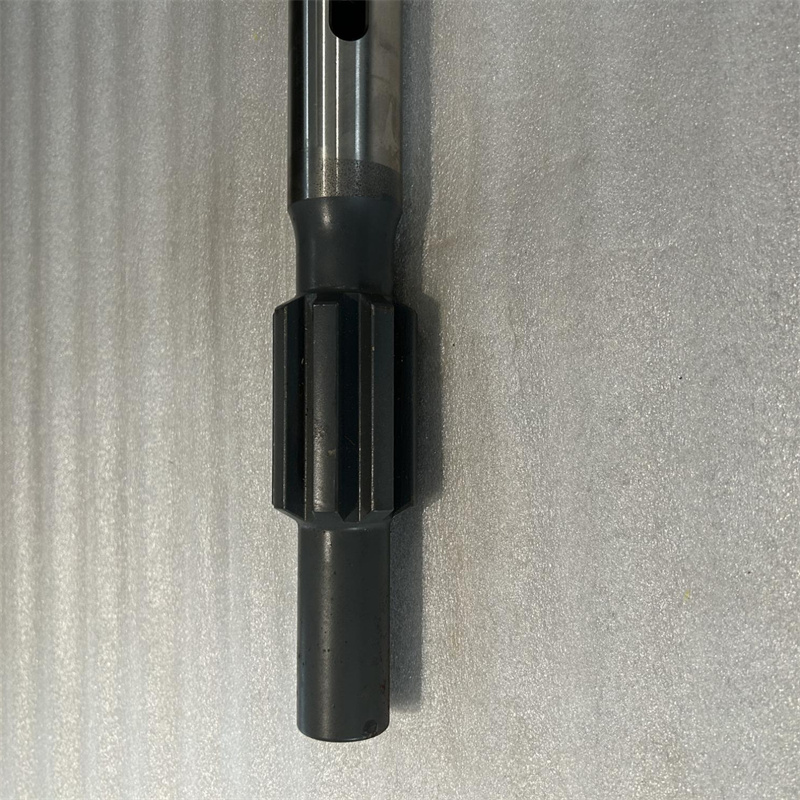

Maximize your high-power drilling efficiency with the HD609 T45 D45 690 shank adapter. Specifically engineered for HD609 series hydraulic rock drills, this 690mm extra-long striking bar features a reinforced T45 thread and a robust 45mm diameter. Crafted from premium forged alloy steel and fully carburized, it delivers exceptional linear energy wave transmission and superior resistance to bending and thread shearing in the toughest mining environments.

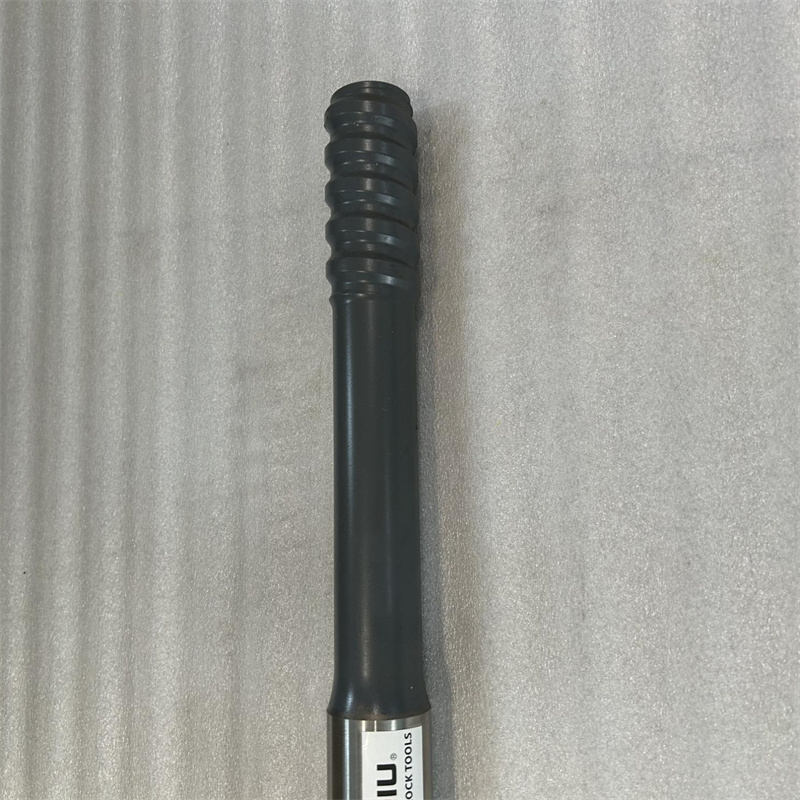

Robust T45 Thread System: The T45 thread provides an expanded cross-sectional and load-bearing surface area compared to standard T38 threads. It allows the HD609 to deliver its maximum rotational torque without the risk of thread stripping, while ensuring easier uncoupling after long, high-pressure drilling cycles.
Reinforced D45 Structural Rigidity: Under high feed pressures, extra-long shanks are highly susceptible to flexing. The 45mm body diameter provides extreme resistance against bending and axial fatigue, maintaining superior hole straightness even when drilling through highly variable or fractured geological strata.
Advanced Surface Engineering: Every shank adapter undergoes strict full-body carburizing followed by high-intensity shot peening. This introduces beneficial compressive stresses, creating a "glass-hard" outer shell to withstand front-head bushing friction while preserving a highly ductile core to absorb millions of cyclic stress impacts.
Primary Applications
The HD609 T45 D45 690 is the professional choice for:
Underground Production Mining: Large-scale long-hole stoping and fan drilling.
Complex Tunneling & Drifting: Umbrella arch configurations, forepoling support, and face development in hard rock.
Bench Drilling: Maintaining high penetration rates (ROP) and precision in large-scale quarrying.
