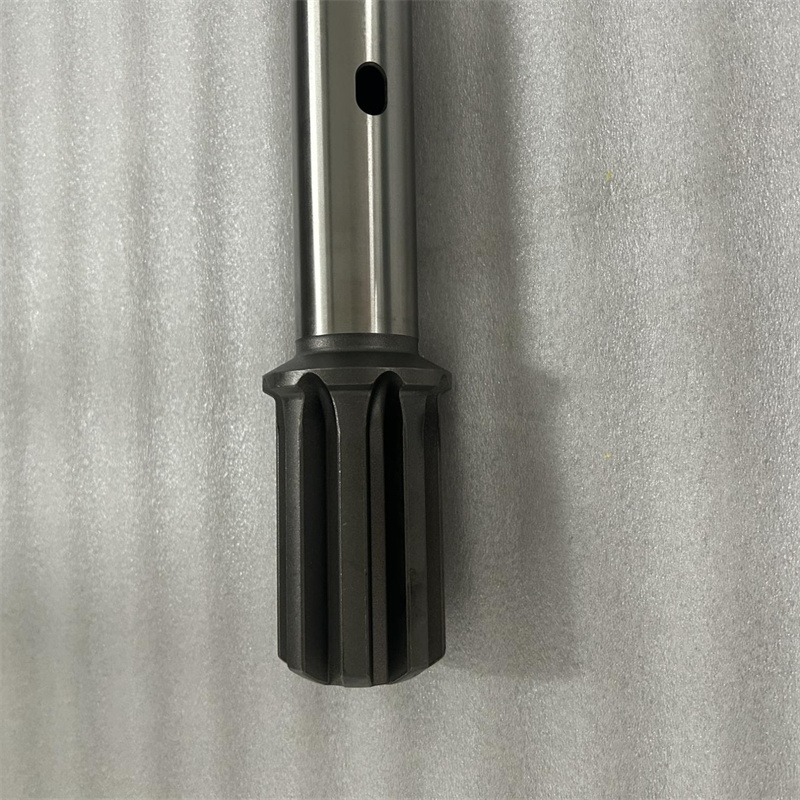

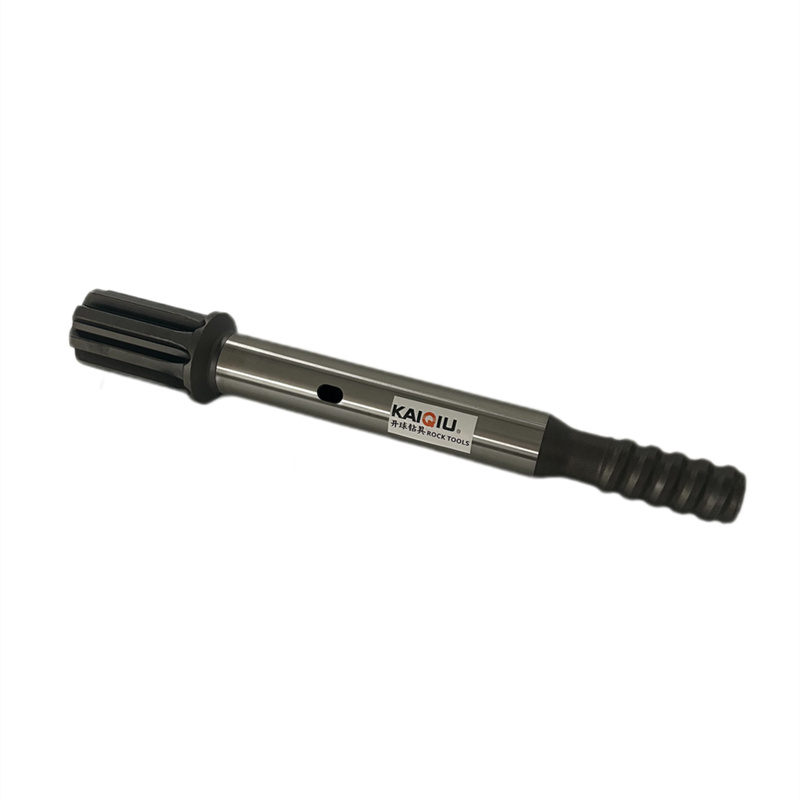

The HC95 SA T38 D45 468 shank adapter is a high-performance striking bar precision-engineered for the HC95 SA series hydraulic drifters. Featuring a robust T38 thread, a 45mm diameter, and a 468mm length, it is designed to optimize energy transfer and provide superior fatigue resistance for high-torque drilling in mining and tunneling.
Product Specifications
Drill Compatibility: Specially designed for HC95 SA models
Thread Type: T38 (High Torque Resistance)
Dimensions: Diameter 45mm, Length 468mm
Process: Premium carburized steel for extended service life
Why Choose the HC95 SA T38 D45 468?
Engineered for "SA" Series Specs: The 468mm length and internal tolerances are specifically tailored for the HC95 SA configuration, ensuring perfect alignment with the piston and reducing the risk of internal drifter wear.

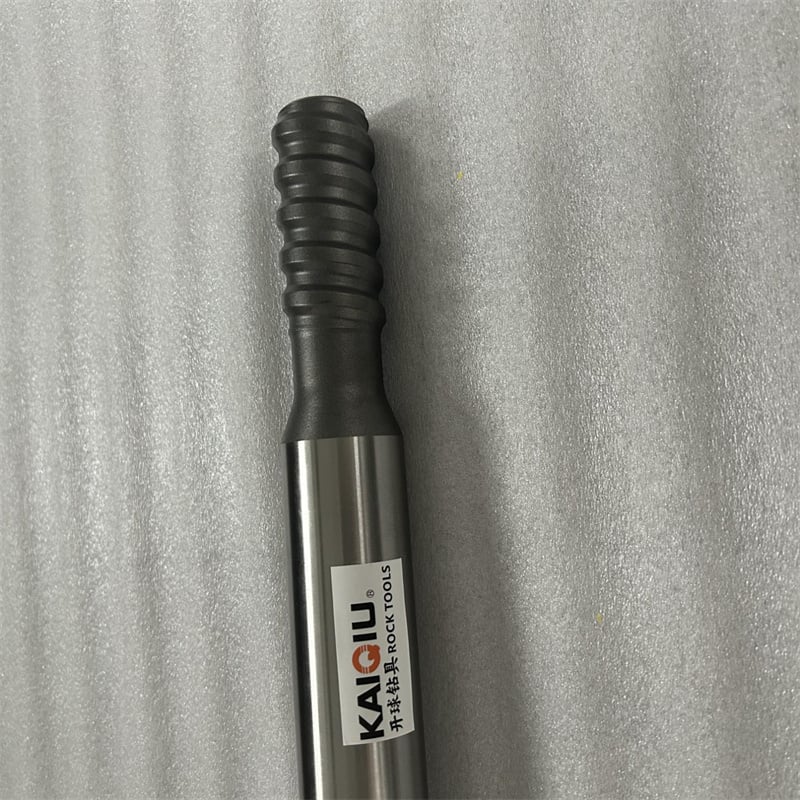

High-Torque T38 Connection: The T38 thread provides a larger load-bearing surface than R38, allowing for higher rotation torque and easier uncoupling, which is essential for deep-hole production.
Reinforced D45 Stability: The 45mm body diameter significantly increases structural rigidity, preventing shank deflection and ensuring that the maximum impact energy reaches the drill bit.
Advanced Fatigue Life: Through rigorous carburizing and shot peening, this shank adapter possesses an ultra-hard surface to resist friction and a high-tenacity core to absorb millions of high-frequency impacts.
Primary Applications
The HC95 SA T38 D45 468 is the ideal choice for:
Production Mining: Reliable long-hole drilling in hard rock underground.
Tunneling: Fast-paced drifting and development projects.
Civil Engineering: Ground reinforcement and foundation piling.
