Home > Products > Top hammer drilling tools > Extension rod (MM rod)
| Drill Rod | Length | Diameter | Weight approx kg | Part No. | ||
| mm | Foot | mm | inch | |||
|

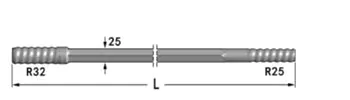

Drifter rod.R32-Hex25-R25
|
2100 | 7' | 25 | 1' | 8.6 | 22H25-R25/R32-2100-23 |
| 2400 | 8' | 25 | 1' | 9.6 | 22H25-R25/R32-2400-23 | |
| 2600 | 8'8" | 25 | 1' | 10.4 | 22125-R25/R32-2600-23 | |
| 2800 | 9' | 25 | 1' | 11.1 | 22H25-R25/R32-2800-23 | |
| 3090 | 10' | 25 | 1' | 12.2 | 22H25-R25/R32-3090-23 | |
| 3700 | 12' | 25 | 1' | 14.6 | 22H25-R25/R32-3700-23 | |
|
Extension rod，R25-Hex25-R25
|
915 | 3' | 25 | 1' | 3.4 | 23H25-R25-0915-23 |
| 1000 | 3'33/8" | 25 | 1' | 4 | 23425-R25-1000-23 | |
| 1220 | 4' | 25 | 1' | 4.6 | 23H25-R25-1220-23 | |
| 1525 | 5' | 25 | 1' | 5.8 | 23H25-R25-1525-23 | |
| 1830 | 6' | 25 | 1' | 7 | 23H25-R25-1830-23 | |
| 2435 | 8' | 25 | 1' | 9.3 | 23H25-R25-2435-23 | |
| 3050 | 10' | 25 | 1' | 12 | 23H25-R25-3050-23 | |
|

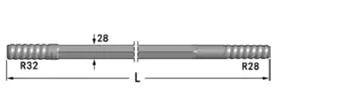

Drifter rod，R32-Hex28-R28
|
2400 | 7'10" | 28 | 1 1/8 | 12.2 | 22H28-R28/R32-2400-23 |
| 2750 | 9' | 28 | 1 1/8 | 14.4 | 22H28-R28/R32-2750-23 | |
| 3700 | 12'11/2" | 28 | 1 1/8 | 18.9 | 22H28-R28/R32-3700-23 | |
| 4000 | 13'13/8" | 28 | 1 1/8 | 20.4 | 22H28-R28/R32-4000-23 | |
| 4310 | 14'/11/2" | 28 | 1 1/8 | 22 | 22H28-R28/R32-4310-23 | |
| 4920 | 16'/11/2" | 28 | 1 1/8 | 25.3 | 22H28-R28/R32-4920-23 | |
|

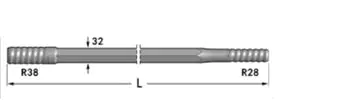

Drifter rod，R38-Hex32-R28
|
2900 | 9'/61/8" | 32 | 1 1/4 | 18.8 | 22H32-R28/R38-2900-23 |
| 3090 | 10'/11/2" | 32 | 1 1/4 | 20 | 22H32-R28/R38-3090-23 | |
| 3700 | 12'11/2" | 32 | 1 1/4 | 24 | 22H32-R28/R38-3700-23 | |
| 4310 | 14'11/2" | 32 | 1 1/4 | 27.9 | 22H32-R28/R38-4310-23 | |
|

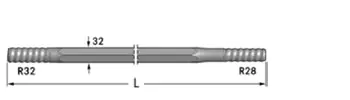

Drifter rod，R32-Hex32-R28
|
3090 | 10'11/2" | 32 | 1 1/4 | 20 | 22H32-R28/R32-3090-23 |
| 3700 | 12'11/2" | 32 | 1 1/4 | 23.5 | 22H32-R28/R32-3700-23 | |
|
Drifter rod，R32-Hex32-R28
|
3090 | 10'11/2" | 32 | 1 1/4 | 20 | 22H32-R28/R32N-3090-23 |
| 3700 | 12'11/2" | 32 | 1 1/4 | 24 | 22H32-R23/R32N-3700-23 | |
| 4000 | 13'13/8" | 32 | 1 1/4 | 25.9 | 22H32-R28/R32N-4000-23 | |
| 4310 | 14'11/2" | 32 | 1 1/4 | 27.9 | 22H32-R23/R32N-4310-23 | |
|
Extension rod，R28-Hex28-R28
|
3050 | 10' | 28 | 1 1/8 | 15 | 23H28-R28-3050-23 |
|
Drifter rod，R/T38-Hex32-R32
|
2400 | 7'10" | 32 | 1 1/4 | 15.3 | 7314-3601 |
| 3090 | 10'11/2" | 32 | 1 1/4 | 19.8 | 7314-3602 | |
| 3400 | 11'13/4" | 32 | 1 1/4 | 21.7 | 7314-3603 | |
| 4000 | 13'13/8" | 32 | 1 1/4 | 25.5 | 7314-3604 | |
| 4310 | 14'11/2" | 32 | 1 1/4 | 27.5 | 7314-3605 | |
| 4920 | 16'11/2" | 32 | 1 1/4 | 31.3 | 7314-3606 | |
| 5530 | 18'11/2" | 32 | 1 1/4 | 35.2 | 7314-3607 | |
|
Drifter rod，R/T38-Hex35-R32
|
3090 | 10'11/2" | 35 | 1 3/8 | 24 | 7314-3608 |
| 3700 | 12'11/2" | 35 | 1 3/8 | 28.7 | 7314-3609 | |
| 4000 | 13'13/8" | 35 | 1 3/8 | 31.1 | 7314-3610 | |
| 4310 | 14'11/2" | 35 | 1 3/8 | 33.4 | 7314-3611 | |
| 4920 | 16'11/2" | 35 | 1 3/8 | 37.8 | 7314-3612 | |
| 5530 | 18'11/2" | 35 | 1 3/8 | 42.9 | 7314-3613 | |
| 6100 | 20' | 35 | 1 3/8 | 47.3 | 7314-3614 | |
|
Speedrod，T38-Hex35-R32
|
3700 | 12'11/2" | 35 | 1 3/8 | 29 | 7314-3615 |
| 4310 | 14'11/2" | 35 | 1 3/8 | 34.1 | 7314-3616 | |
| 4920 | 16'11/2" | 35 | 1 3/8 | 38.8 | 7314-3617 | |
| 5530 | 18'11/2" | 35 | 1 3/8 | 43.6 | 7314-3618 | |
| 6400 | 21' | 35 | 1 3/8 | 50.3 | 7314-3619 | |
|

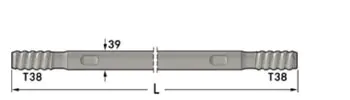

Extension rod T38-Round39-138
|
1220 | 4' | 39 | 1 1/2 | 10.2 | 23839-T38-1220-23 |
| 1525 | 5' | 39 | 1 1/2 | 12.8 | 23R39-T38-1525-23 | |
| 1830 | 6' | 39 | 1 1/2 | 15.3 | 23R39-T38-1830-23 | |
| 2435 | 8' | 39 | 1 1/2 | 20.4 | 23R39-T38-2435-23 | |
| 3050 | 10' | 39 | 1 1/2 | 25.5 | 23R39-T38-3050-23 | |
| 3660 | 12' | 39 | 1 1/2 | 30.9 | 23R39-T38-3660-23 | |
| 3965 | 13' | 39 | 1 1/2 | 33.2 | 23R39-T38-3965-23 | |
| 4270 | 14' | 39 | 1 1/2 | 35.7 | 23R39-T38-4270-23 | |
| 4880 | 16' | 39 | 1 1/2 | 41 | 23R39-T38-4880-23 | |
| 5530 | 18'11/2" | 39 | 1 1/2 | 46.3 | 23R39-T38-5530-23 | |
| 6095 | 20' | 39 | 1 1/2 | 50.9 | 23R39-T38-6095-23 | |
|

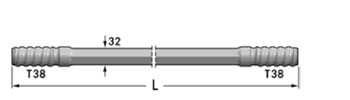

Hex. extension rod T38-Hex32-T38
|
1220 | 4' | 32 | 1 1/4 | 8.6 | 23H32-T38-1220-23 |
| 1830 | 6' | 32 | 1 1/4 | 12.6 | 23H32-T38-1830-23 | |
| 2435 | 8' | 32 | 1 1/4 | 16.6 | 23H32-T38-2435-23 | |
| 3050 | 10' | 32 | 1 1/4 | 20.8 | 23H32-T38-3050-23 | |
| 3660 | 12' | 32 | 24.9 | 23H32-T38-3660-23 | ||
|

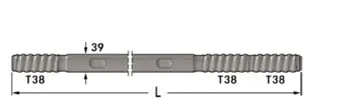

Double thread rod T38-Round39-T39
|
3050 | 10' | 46 | 1 3/4 | 25.7 | 23R39-T38/2T38-3050-23 |
| 3660 | 12' | 46 | 1 3/4 | 30.9 | 23R39-T38/2T38-3660-23 | |
|

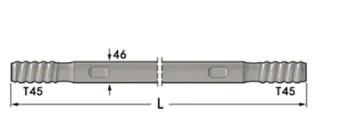

Extension rod T45-Round45-145
|
1830 | 6' | 46 | 1 3/4 | 21.6 | 23R46-T45-1830-23 |
| 2435 | 8' | 46 | 1 3/4 | 28.3 | 23R46-T45-2435-23 | |
| 3050 | 10' | 46 | 1 3/4 | 35.2 | 23R46-T45-3050-23 | |
| 3660 | 12' | 46 | 1 3/4 | 42.1 | 23R46-T45-3660-23 | |
| 4270 | 14' | 46 | 1 3/4 | 48.9 | 23R46-T45-4270-23 | |
| 5530 | 18' | 46 | 1 3/4 | 63 | 23R46-T45-5530-23 | |
| 6095 | 20' | 46 | 1 3/4 | 69.3 | 23R46-T45-6095-23 | |
|

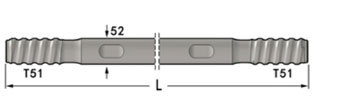

Extension rod T51-Round52-T51
|
3050 | 10' | 52 | 2 | 45.3 | 23R52-T51-3050-23 |
| 3660 | 12' | 52 | 2 | 54.1 | 23R52-151-3660-23 | |
| 4270 | 14' | 52 | 2 | 63 | 23R52-T51-4270-23 | |
| 4880 | 16' | 52 | 2 | 71.8 | 23R52-T51-4880-23 | |
| 5530 | 18' | 52 | 2 | 81.2 | 23852-T51-5530-23 | |
| 6095 | 20' | 52 | 2 | 89.4 | 23R52-T51-6095-23 | |
