Thread Button Bit

Thread Button Bit

More models and custom requirements welcome to consult us
Get a Quote

Product parameter

Bits Diameter Buttons.mm  Angle Flushing hole Part No.
mm in Front No Size Gauge NO Size Front Gauge
   R25 Button bit

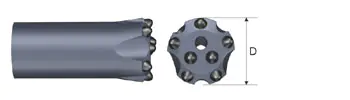

图片3(c9a6baed3f).png 33 1 5/16" 2x7 5x7 35° 1 2 33R25-27/57-T7-01
35 1 3/8" 2x7 5x9 30° 1 2 35R25-27/59-T7-01
38 1 1/2" 2x7 5x9 30° 1 2 38R25-27/59-T7-01
41 5/8" 2x8 5x9 35° 1 2 41R25-28/59-T7-01
43 1 11/16" 2x8 5x10 35° 1 2 43R25-28/510-T7-01
45 13/4" 2x9 5x10 35° 1 2 45R25-29/510-T7-01

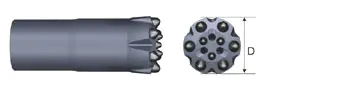

   R25 Button bit
图片4.png 43 1 11/16" 3x8 6x9 30° 3 1 43R25-38/69-T9-01
45 1 3/8" 3x8 6x10 35° 3 1 45R25-38/610-T9-01
48 1 29/64" 3x9 6x10 35° 3 1 48R25-39/610-T9-01
51 1 1/2" 3x 10 6x10 35° 3 1 51R25-310/610-T9-01

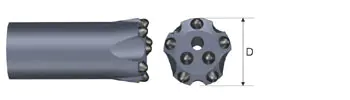

  R28 Button bit
图片5.png 38 1 1/2" 2x 7 5x9 30° 1 2 38R28-27/59-T7-01
38 1 1/2" 2x 7 5x9 35° 1 2 38R28-27/59-T7-02
41 1 5/8" 2x 8 5x9 35° 1 2 41R28-28/59-T7-01
43 1 11/16" 2x 8 5x10 35° 1 2 43R28-28/510-T7-01
45 1 3/4" 2x 9 5x10 35° 1 2 45R28-29/510-T7-01

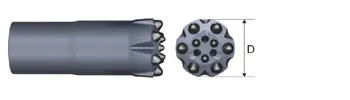

   R28 Button bit
图片6.png 43 1 11/16" 3x 8 6x9 30° 3 1 43R28-38/69-T9-01
45 1 3/4" 3x 8 6x10 35° 3 1 45R28-38/610-T9-01
48 1 7/8" 3x 9 6x10 35° 3 1 45R28-39/610-T9-01

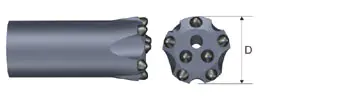

  R32 Button bit
图片7.png 41 1 5/8" 2x 8 5x9 30° 1 2 41R32-28/59-T7-01
43 1 11/46" 2x 9 5x10 35° 1 2 43R32 29/510-77-01
45 1 3/4" 2x 9 5x11 35° 1 2 45R32 29/511-77-01
48 1 7/8" 2x 9 5x11 35° 1 2 48R32 29/511-77-01
51 2" 2x 10 5x12 35° 1 2 51R32 210/512-77-01
   R32 Button bit

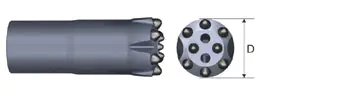

图片8.png 43 1 11/16" 2x 9 6x9 35° 2 2 43R32-29/69-T8-01
45 1 3/4" 2x 9 6x10 35° 2 2 45R32-29/610-T8-01
   Button bit

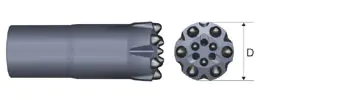

图片9.png 43 1 11/6" 3x 8 5x9 30° 3 1 43R32-38/69-T9-01
45 1 3/4" 3x 8 6x10 35° 3 1 45R32-38/610-T9-01
48 1 7/8" 3x 9 6x10 35° 3 1 48R32-39/610-T9-01
51 2" 3x 9 6x10 35° 3 1 51R32-39/610-T9-01
57 2 1/4" 3x 10 6x10 35° 3 1 57R32-310/610-T9-01
64 2 1/2" 3x 12 6x12 35° 3 1 64R32-312/612-T9-01

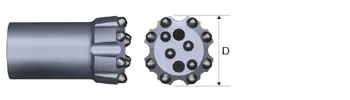

 R32  Button bit
图片10.png 64 2 1/2" 4x 10 8x10 35° 2 2 64R32-410/810-T12-01
76 3" 4x 12 8x12 35° 2 2 76R32-412/812-T12-01

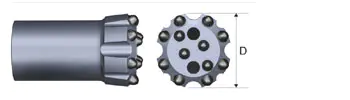

   R38 Button bit
图片11.png 64 2 1/2" 4x 10 8x10 35° 2 2 64R38-41/810-T12-01
76 3" 4x 12 8x12 35° 2 2 76R38-412/812-T12-01

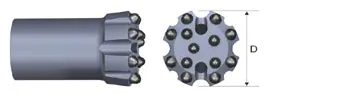

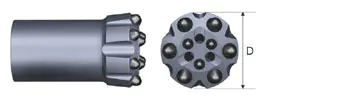

  T38 Button bit,Flat face
图片12.png 57 2 1/4" 3x10 6x 11 35° 2 2 57T38-310/611-T9-01
64 2 1/2" 3x 12 6x 12 35° 2 2 64T38-312/612-T9-01
图片13.png 76 3" 4x10 8x 12 35° 2 2 76T38-410/812-T12-01
89 3 1/2" 5x 12 8x 12 35° 2 2 89T38-512/812-T13-01
   T38 Button bit,Drop center
图片14.png 64 2 1/2" 4x10 6x11 35° 3 1 64T38-410/611-TA10-01
70 2 3/4" 4x10 4x11 40° 3 1 70T38-410/611-TA10-01
76 3" 4x11 6x13 35° 3 1 76T38-411/613-TA10-01
89 31/2" 5x 11 6x13 35° 3 1 89T38-511/613-TA11-01

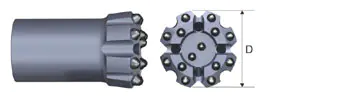

图片15.png 76 3" 5x12 8x 12 35° 4 1 76T38-512/812-TA13-01
89 3 1/2" 6x 11 8x 12 35° 4 1 89T38-611/812-TA14-01

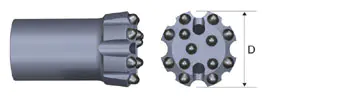

   T45 Button bit,Flat face

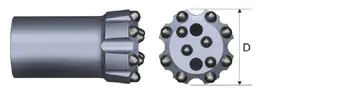

图片16.png 76 3' 4x12 8x 12 35° 2 2 76T45-412/812-T12-01
89 3 1/2" 5x 12 8x 12 35° 2 2 89T45-512/812-T13-01
89 31/2" 6x 12 8x 12 35° 2 2 89T45-612/812-T14-01
图片17.png 76 3' 6x10 8x 11 35° 2 2 76T45-610/811-T14-01
89 3 1/2" 5x 12 8x 12 35° 2 2 89T45-512/812-T13-01

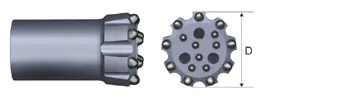

图片18.png 89 3 1/2" 6x12 9x 12 35° 2 2 89T45-612/912-T15-01
102 4' 7x 12 9x 12 35° 3 - 102T45-712/912-T16-01
102 4' 7x 12 9x 13 35° 3 - 102T45-712/913-T16-01

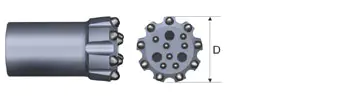

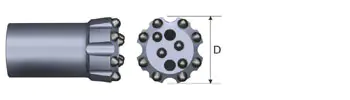

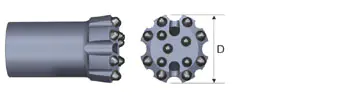

   T51 Button bit,Flat face
图片19.png 89 3 1/2" 5x12 8x 12 35° 2 2 89T51-512/812-T13-01
89 3 1/2" 6x 12 8x 12 35° 2 2 89T51-612/812-T14-01
102 4" 4x 14 8x 14 35° 2 2 102T51-414/814-T12-01
图片20.png 89 3 1/2" 5x 12 8x 12 35° 2 2 89T51-512/812-T13-02
102 4" 6x 14 8x 14 35° 2 1 102T51-614/814-T14-02
115 4 1/2" 6x 14 8x 14 35° 2 1 115T51-614/814-T14-02
图片21.png 89 3 1/2" 6x12 9x 12 35° 3 - 89T51-612/912-T15-01
102 4" 7x 12 9x 12 35° 3 - 102T51-712/912-T16-01
102 4" 7x 12 9x 13 35° 3 - 102T51-712/913-T16-01
115 4 1/2" 7x 13 9x 13 35° 3 1 115T51-713/913-T16-01
115 4 1/2" 6x 14 9x 14 35° 3 1 115T51-614/914-T15-01

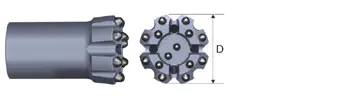

   T51 Button bit,,Drop center
图片22.png 89 3 1/2" 2x 10 8x 12 35° 4 - 89T51-610/812-TA14-01
4x 12
89 3 1/2" 5x 12 8x 12 35° 4 - 89T51-512/812-TA13-01
102 4" 6x 12 8x 13 35° 4 - 102T51-612/813-TA14-01
102 4" 6x 12 8x 14 35° 4 - 102T51-612/814-TA14-01
115 4 1/2" 6x 14 8x 14 35° 4 - 115T51-614/814-TA14-01
115 4 1/2" 6x 13 8x 14 35° 4 - 115T51-613/814-TA14-01
127 5" 7x 14 8x 14 35° 4 - 127T51-714/814-TA15-01
140 5 1/2" 7x 16 8x 16 35° 4 - 140T51-716/816-TA15-01
152 6" 8x 16 8x 16 35° 4 - 152T51-816/816-TA16-01

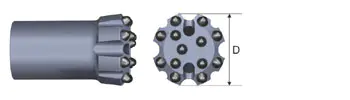

  ST58 Button bit, Flat face
图片23.png 89 3 1/2" 5x 12 8x12 35° 2 2 89ST58-515/812-T13-01
102 3 1/2" 6x 12 8x14 35° 2 1 102ST58-612/814-T14-01
  ST58 Button bit, Drop center

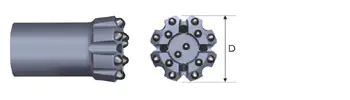

图片24.png 89 3 1/2" 5x 13 8x13 35° 4 - 89ST58-513/813-TA13-01
102 4" 2x 12 8x14 35° 4 - 102ST58-612/814-TA14-01
4x 13

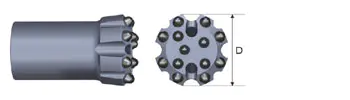

  ST68 Button bit, Flat face
图片25.png 102 4" 6x 12 8x 14 35° 2 2 102ST68-612/814-T14-01
115 4 1/2" 6x 14 9x 14 35° 3 1 115ST68-614/914-T15-01
  ST68 Button bit, Flat face

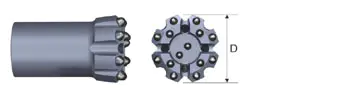

图片26.png 102 4" 2x 12 8x 14 35° 4 - 102ST68-612/814-TA14-01
4x 13
115 4 1/2" 7x 12 8x 14 35° 4 - 115ST68-712/814-TA15-01

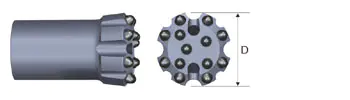

   GT60 Button bit, Flat face
图片27.png 92 3 5/8" 6X 12 8X 13 35° 4 - 92GT60-612/813-T14-01
102 4" 6X 12 8X 14 35° 2 1 102GT60-612/814-T14-01
115 4 1/2" 8X 13 9X 14 35° 2 1 115GT60-813/914-T17-01
127 5" 8X 14 9X 16 35° 3 - 127GT60-814/916-T17-01
   GT60 Button bit, Drop center
图片28.png 92 3 5/8" 2X 10,4X 12 8X 13 35° 4 - 92GT60-612/813-TA14-01
102 4' 6X 12 8X 14 35° 4 - 102GT60-612/814-TA14-01
115 4 1/2" 6X 14 8X 14 35° 4 - 115GT60-614/814-TA14-01
127 5" 7X 14 8X 16 35° 4 - 127GT60-714/816-TA15-01
