Home > Products > Top hammer drilling tools > Speed Rod (MF rod)
| Drill Rod | Length | Diameter | Weight approx kg | Part No. | ||
| mm | Foot | mm | inch | |||
|

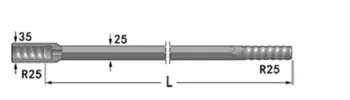

Speedrod，R25-Hex25-R25
|
610 | 2' | 25 | 1' | 2.7 | 24H25-R25/35-0610-23 |
| 1220 | 4' | 25 | 1' | 5.1 | 24H25-R25/35-1220-23 | |
|

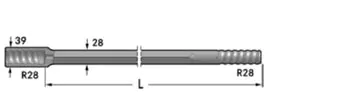

Speedrod，R28-Hex28-R28
|
3050 | 10' | 28 | 1 1/8 | 15 | 24H28-R28/39-3050-23 |
|
Speedrod，T38-Hex35-R32
|
3700 | 12'11/2" | 35 | 1 3/8 | 29 | 7314-3615 |
| 4310 | 14'11/2" | 35 | 1 3/8 | 34.1 | 7314-3616 | |
| 4920 | 16'11/2" | 35 | 1 3/8 | 38.8 | 7314-3617 | |
| 5530 | 18'11/2" | 35 | 1 3/8 | 43.6 | 7314-3618 | |
| 6400 | 21' | 35 | 1 3/8 | 50.3 | 7314-3619 | |
|

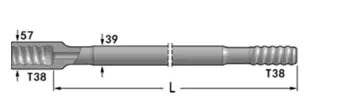

MF-rod T38-Rourd39-138
|
915 | 3' | 39 | 1 1/2 | 10.7 | 24R39-T38/57-0915-23 |
| 1220 | 4' | 39 | 1 1/2 | 13.3 | 24R39-T38/57-1220-23 | |
| 1525 | 5' | 39 | 1 1/2 | 15.8 | 24R39-T38/57-1525-23 | |
| 1830 | 6' | 39 | 1 1/2 | 18.3 | 24R39-T38/57-1830-23 | |
| 3050 | 10' | 39 | 1 1/2 | 28.5 | 24R39-T38/57-3050-23 | |
| 3660 | 12' | 39 | 1 1/2 | 33.6 | 24R39-T38/57-3660-23 | |
| 4270 | 14' | 39 | 1 1/2 | 38.7 | 24R39-T38/57-4270-23 | |
| 4880 | 16' | 39 | 1 1/2 | 43.7 | 24R39-T38/57-4880-23 | |
| 5530 | 18'11/2" | 39 | 1 1/2 | 49.2 | 24R39-T38/57-5530-23 | |
| 6095 | 20' | 39 | 1 1/2 | 53.9 | 24R39-T38/57-6095-23 | |
|

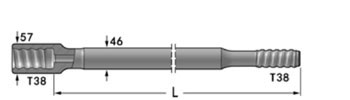

Guide speedrod T38-Round46-T38
|
1830 | 6' | 46 | 1 3/4 | 23.5 | 24R46-T38/57-1830-23 |
| 3050 | 10' | 46 | 1 3/4 | 37.2 | 24R46-T38/57-3050-23 | |
| 3660 | 12' | 46 | 1 3/4 | 44 | 24R46-T38/57-3660-23 | |
| 4270 | 14' | 46 | 1 3/4 | 50.9 | 24R46-T38/57-4270-23 | |
| 4880 | 16' | 46 | 1 3/4 | 57.7 | 24R46-T38/57-4880-23 | |
| 5530 | 18'11/2" | 46 | 1 3/4 | 65 | 24R46-T38/57-5530-23 | |
| 6095 | 20' | 46 | 1 3/4 | 71.3 | 24R46-T38/57-6095-23 | |
|

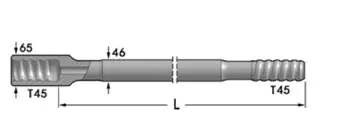

MF-rpd T45-Round46-T45
|
1525 | 5' | 46 | 1 3/4 | 21.2 | 24R46-145/65-1525-23 |
| 1830 | 6' | 46 | 1 3/4 | 24.6 | 24R46-145/65-1830-23 | |
| 3050 | 10' | 46 | 1 3/4 | 38.2 | 24R46-T45/65-3050-23 | |
| 3660 | 12' | 46 | 1 3/4 | 45 | 24R46-T45/65-3660-23 | |
| 4270 | 14' | 46 | 1 3/4 | 51.9 | 24R46-T45/65-4270-23 | |
| 5530 | 18' | 46 | 1 3/4 | 66 | 24R46-T45/65-5530-23 | |
| 6095 | 20' | 46 | 1 3/4 | 72.3 | 24846-T45/65-6095-23 | |
|

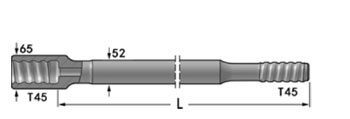

Guide speedrod T45-found52-145
|
3050 | 10' | 52 | 2 | 46.6 | 24R52-T45/65-3050-23 |
| 3660 | 12' | 52 | 2 | 55.8 | 24R52-T45/65-3660-23 | |
| 4270 | 14' | 52 | 2 | 63.8 | 24R52-T45/65-4270-23 | |
| 5530 | 18' | 52 | 2 | 81.5 | 24852-T45/65-5530-23 | |
| 6095 | 20' | 52 | 2 | 89.4 | 24R52-T45/65-6095-23 | |
|

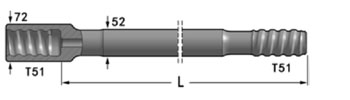

MF-rod T51-Round52-T51
|
1525 | 5' | 52 | 2 | 26.2 | 24R52-T51/72-1525-23 |
| 1830 | 6' | 52 | 2 | 30.6 | 24R52-151/72-1830-23 | |
| 3050 | 10' | 52 | 2 | 48.3 | 24R52-151/72-3050-23 | |
| 3660 | 12' | 52 | 2 | 57.1 | 24R52-T51/72-3660-23 | |
| 4270 | 14' | 52 | 2 | 66 | 24R52-T51/72-4270-23 | |
| 4880 | 16' | 52 | 2 | 74.8 | 24R52-T51/72-4880-23 | |
| 5530 | 18' | 52 | 2 | 84.2 | 24R52-T51/72-5530-23 | |
| 6095 | 20' | 52 | 2 | 90.4 | 24R52-T51/72-6095-23 | |
 |

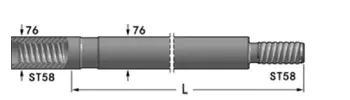

1525 | 5' | 76 | 2 3/8" | 34 | 24G76-ST58/76-1525-23 |
| 1830 | 6' | 76 | 2 3/8" | 40 | 24G76-ST58/76-1830-23 | |
| 3660 | 12' | 76 | 2 3/8" | 76.3 | 24G76-ST58/76-3660-23 | |
|
Drill tube
|
1525 | 5' | 87 | 3 7/16 | 35.5 | 24G87-ST68/87-1525-23 |
| 1830 | 6' | 87 | 3 7/16 | 43.8 | 24G87-ST68/87-1830-23 | |
| 3660 | 12' | 87 | 3 7/16 | 80 | 24G87-ST68/87-3660-23 | |
| 6110 | 20' | 87 | 3 7/16 | 133 | 24G87-ST68/87-6110-23 | |
|

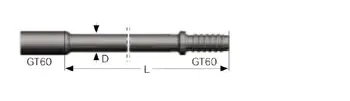

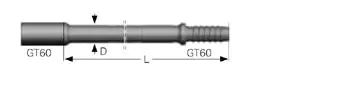

MF.rod GT60 -round 60-GT60. For bits from 96 mm
|
3660 | 12" | 60 | 2 3/8" | 7610-1137-80 | |
| 4265 | 14" | 60 | 2 3/8" | 7610-1143-80 | ||
| 5485 | 18" | 60 | 2 3/8" | 7610-1155-80 | ||
| 6095 | 20" | 60 | 2 3/8" | 7610-1161-80 | ||
|
Female end φ85mm.Flushing hole 25 mm
|
4265 | 14" | 64 | 2 1/2" | 7610-1243-80 | |
|
MF rod, GT60-round 60-GT60 For 92-115 mm bits.
|
4265 | 14" | 60 | 2 3/8" | 7610-1443-80 | |
