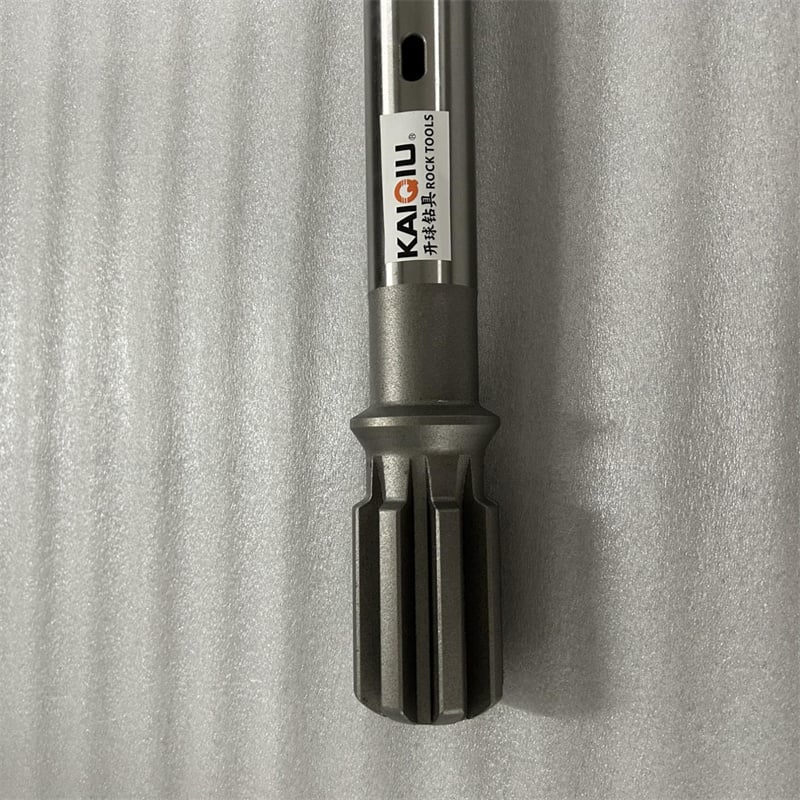

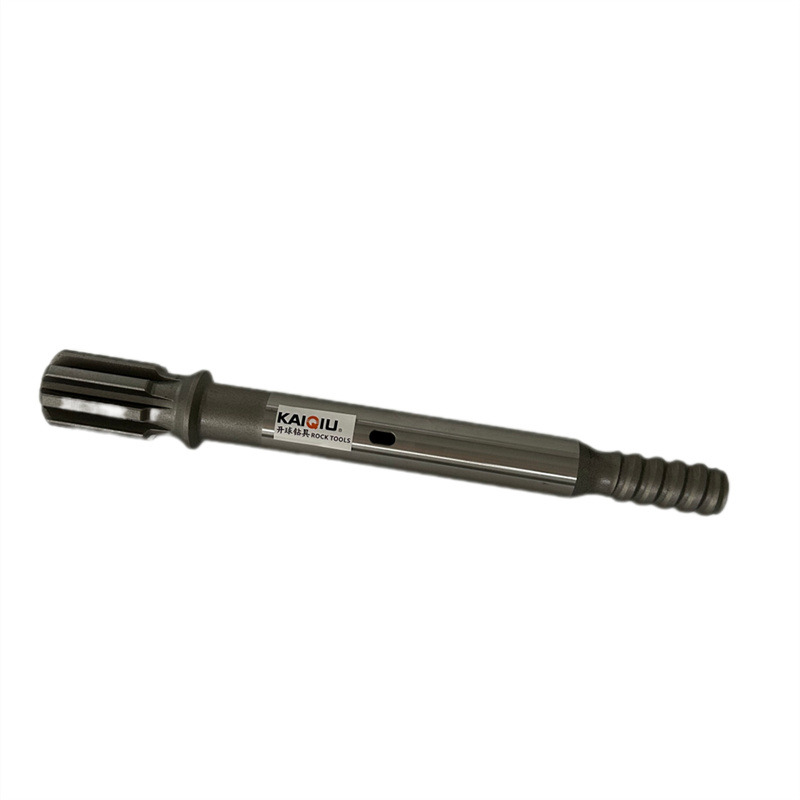

The HC95LQ T38 D45 503 shank adapter is a high-performance striking bar engineered for the HC95LQ series hydraulic rock drills. Featuring a 503mm length, a robust 45mm diameter, and a T38 thread, it is designed to maximize energy transfer and provide superior fatigue resistance in demanding tunneling and production mining applications.
Product Specifications
Drill Compatibility: Specially optimized for HC95LQ hydraulic drifters
Thread Type: T38 (High Torque Resistance)
Dimensions: Diameter 45mm, Length 503mm
Performance: High-grade carburized steel for extreme durability
Why Choose the HC95LQ T38 D45 503?
Reinforced D45 Construction: The 45mm diameter provides superior structural rigidity, minimizing bending stress during deep-hole drilling and protecting the internal bushings of the rock drill.

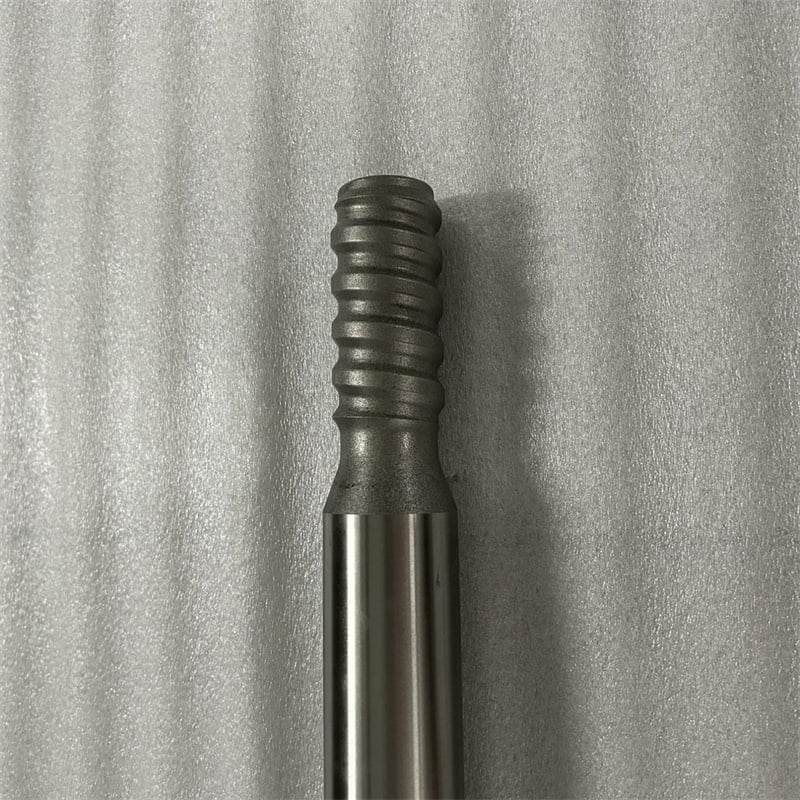

T38 High-Torque Threading: The T38 connection allows for higher rotational torque transmission compared to R-threads, making it ideal for difficult rock formations where drill rod jamming is a risk.
Advanced Heat Treatment: Our shanks undergo full carburization and shot peening, creating a "glass-hard" exterior to resist wear and a tough, shock-absorbing core to prevent breakage under high-frequency impact.
Primary Applications
The HC95LQ T38 D45 503 is the top choice for:
Deep-Hole Production: Maintaining hole precision in large-scale underground mining.
Tunnelling: Rapid development and face drilling in civil engineering projects.
Bench Drilling: Reliable performance in quarrying and infrastructure construction.
